RAL

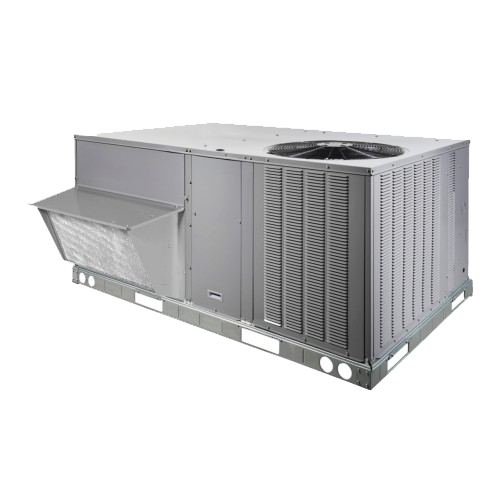

High Efficiency High Outside Air Light Commercial Rooftop System
The RAL High Efficiency High Outside Air Light Commercial Rooftop System offers efficient, reliable cooling for light commercial applications, combining three-stage heating and cooling with quiet operation and durable construction.
- Two-Speed Fan
- Delivers 100% fresh, conditioned outdoor air to meet ventilation codes and enhance customer comfort.
- Seamlessly pairs with VRF and split systems to provide dedicated ventilation without overloading space cooling units.
- Direct-drive fan eliminates belt noise and dust
- Double-wall construction and high-MERV filtration ensure a clean, quiet environment.
- Modulating gas or electric heat options ensure consistent comfort in any season, with high turndown ratios for efficiency
- Hinged access panels, overflow protection, and advanced diagnostics simplify maintenance and reduce downtime
- 3-Stage Cooling
- 5-Year Compressor±
- 1-Year Parts Limited Warranty±
- Round Tube Plate Fin Coils (Al/Cu)
- Cu/Cu Coils
- Precoated Coils*
- E-Coated Coils* Louvered Hail Guard*
- 6-15 ton
- Vertical/Horizontal Conversion Kits
- Zone Pressure Transducer
- Duct Pressure Transducer
- EnergyX™ Power Exhaust (Future)
- 4” MERV 8/13 Filter Rack
- SCR Modulating Electric Heat
- High Turndown Gas Heater
- i-Vu® Ready Controls
- Double Wall Construction
- BACnet MS/TP Communication
- Accessory Filter Status Switch
EER2
The Energy Efficiency Ratio (EER2) that calculates the energy the unit uses to function. It can be found by dividing a unit’s BTU output by its wattage, and the high EER2 rating means a more efficient air conditioner, so the higher the better.
IEER (Integrated Energy Efficiency Ratio): Reflects a system’s overall seasonal cooling efficiency by averaging performance across multiple part-load operating conditions.
Operation
A single-stage unit operates at full capacity when on, a two-stage unit has two levels of operation (low for mild heating needs and high for maximum heating), and a modulating unit continuously adjusts its output to match the precise heating demands, offering more efficient and consistent temperature control.
± 1 5-Year Compressor and 1-Year Parts Warranty. Jurisdictions where warranty benefits cannot be conditioned on registration will receive the registered limited warranty periods. Please see warranty certificate for further details and restrictions.
